Basic Info.
Certification
ISO/TS16949, ISO9001
Drum Brakes Classification
Brake Drum
Main Market
South America, North America, Eastern Europe, Mid East, Southeast Asia, Africa, Western Europe, Northern Europe, Oceania, Southern Europe, Central America
Transport Package
2 PCS by Color/Neutral Box
Production Capacity
2.0 Million PCS Annually
Product Description

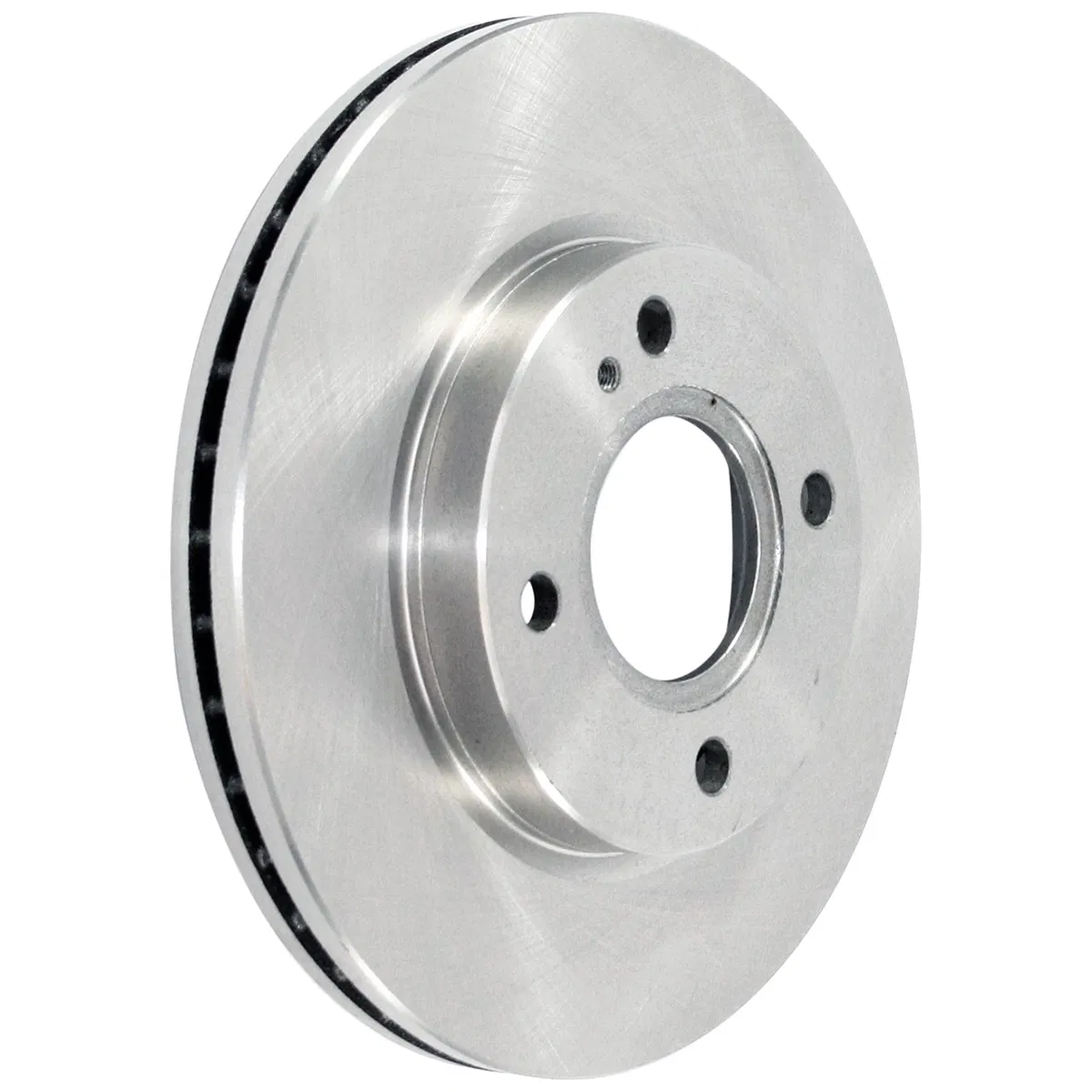

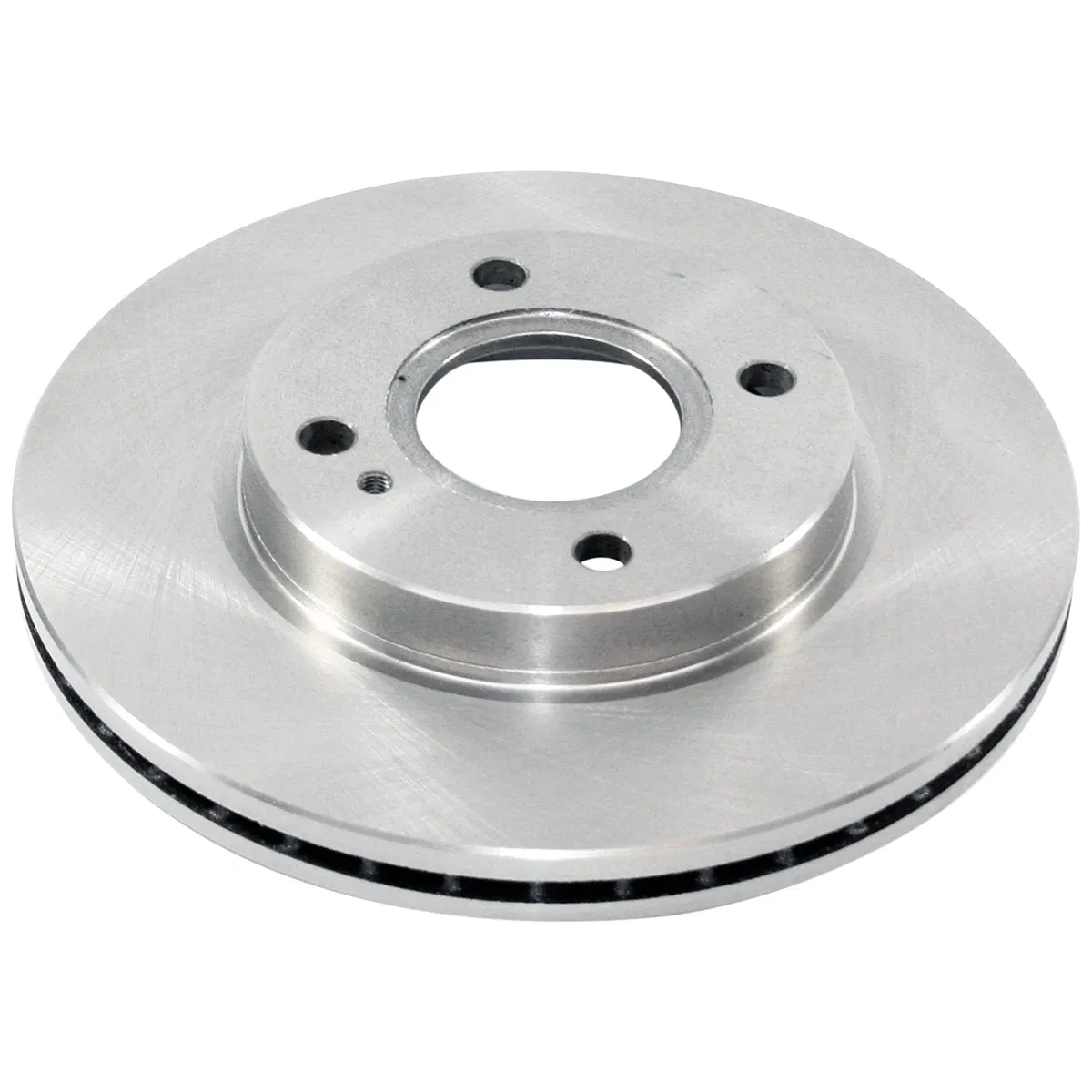

1. Basic Information (Brake Disc OE Replacement)
| OEM# | 7L6615302E; 95535140250; 7L8615302; 95535140251; 95535140251 |
| Car Marker | for AUDI / PORSCHE / VOLKSWAGEN |
| Type | Vented |
| Position | Front |
| Diameter [mm] | 350 |
| Thickness [mm] | 34 |
| Min. Thickness [mm] | 32 |
| Height [mm] | 68.5 |
| Weight [kgs] | 12.08 |
| MOQ [pcs] | 50 |
| Package Qty. | 1 OR 2 |
| Shipping Info. | FOB Qingdao, also available CIF & CFR |
| Delivery Time | 40-60 days usually |
2. Key Features
- Developed to meet OE quality standards, including weight, braking surface thickness
- Quality Casting Process
- Digitally machined surfaces increase friction, reducing stopping distance
- Available painted & coated discs guard against rust and are even easier to fit
- 2,500 references cover common European, American, Japanese and Korean passenger cars
- 100% inspected before packing
- One year/ 30,000 kilometers warranty
3. Chemical Composition (percent)
| ★ High quality casting G3000 ★ |
| Iron % | 93.1-94.5 |
| C % | 3.00-3.50 |
| Si % | 1.90-2.30 |
| Mn % | 0.60-0.90 |
| S % | ≤0.12 |
| P % | ≤0.10 |
| ★ Physical properties |
| Tension strength | ≥200N/mm² |
| Brinell Hardness | 190-230 |

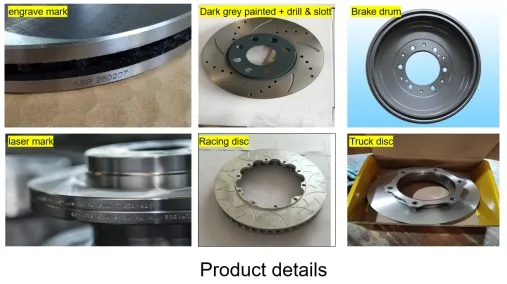

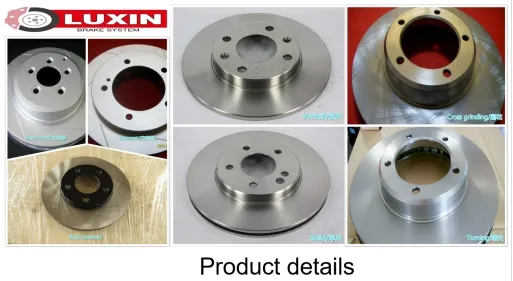

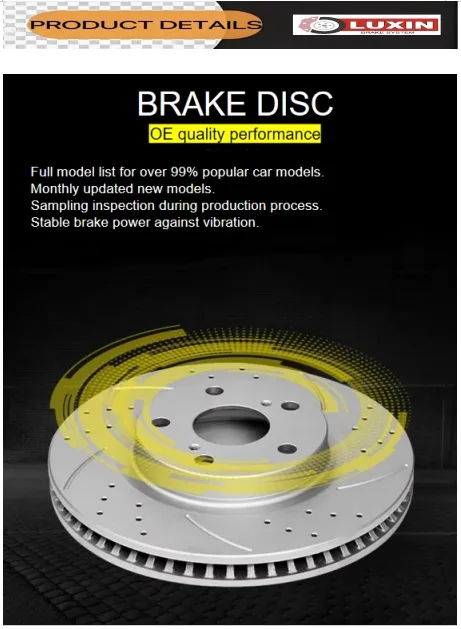

4. Product Details
Product Photos / Brake Disc Types: Vented & Solid. Plain surface is commonly used. Drilled & slotted, grindings are also available as performance brake rotors. Coated rotors like black painted, geomet, dacromet, and galvanized/ zinc-plated, can be as requested. OEM replacement brake discs are not drilled or slotted, but offer equal quality as your OEM discs at an affordable price.
About our brake disc:
- Wide selection of materials
- Good thermal conductivity
- Strong wear resistance
- Good balance
- Stable braking effect
- Easy to install and replace

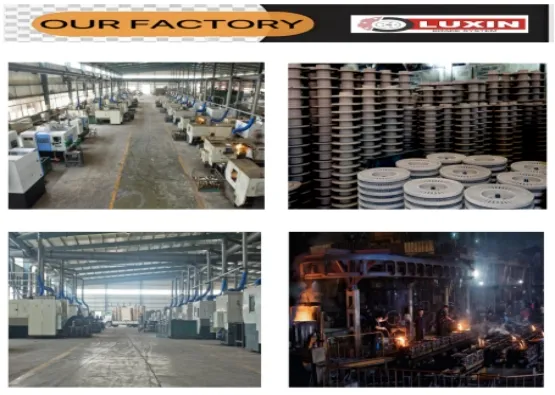

5. Factory Overview & Show
Professional Manufacturer Experience: 14 years expertise since 2003 | Employees: 260-300 | Products: Brake disc, brake rotor and brake drum for PC, LCV & HCV | References: over 2,500 and keep developing | Capacity: 2.0 million pcs annually | Foundry: 10*1T electric furnace | Machining: 12 production lines | Certificates: ISO9001, TS16949, R90 under progress | Sales Area: Global

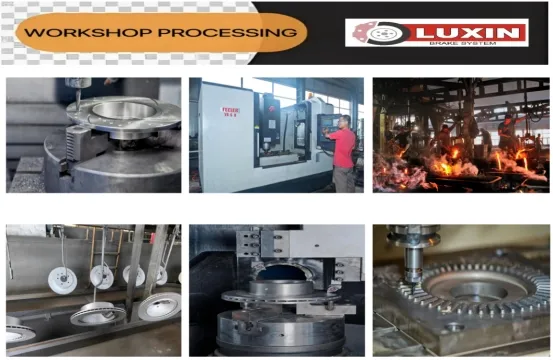

6. Workshop Processing & Product Testing
Brake Disc Features & Inspection:
- Anti-rust coating
- Dimensions run out within 0.05mm
- DTV Tolerance specification is within 0.015mm
- Material physical and chemical inspection
- Test density, flatness and parallelism
- Test performance and noise/NVH
7. Our Advantage
8. Packing & Delivery
Frequently Asked Questions
Q1: What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes or Brown kraft paper box. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What is the delivery time for orders?
A: Usually, it takes 45-60 days. The first order leading time is typically a little longer.
Q3: Do you test all your goods before delivery?
A: Yes, we have 100% inspection and testing processes in place before delivery.
Q4: What is your full range of product assortment?
A: Our comprehensive product line consists of brake discs, brake rotors, and brake drums.
Q5: What is the MOQ (Minimum Order Quantity) per item?
A: The minimum order quantity is 50 pieces per reference/item.
Q6: Is it possible to manufacture products under our own private brand?
A: Yes, we welcome private brands and custom marking or stamping on goods as requested.
